Switch quickly between two welding wires with the CM-0401-D DOUBLE wire feeder for ARXIS PULSE. Reduce downtime and simplify wire changes.

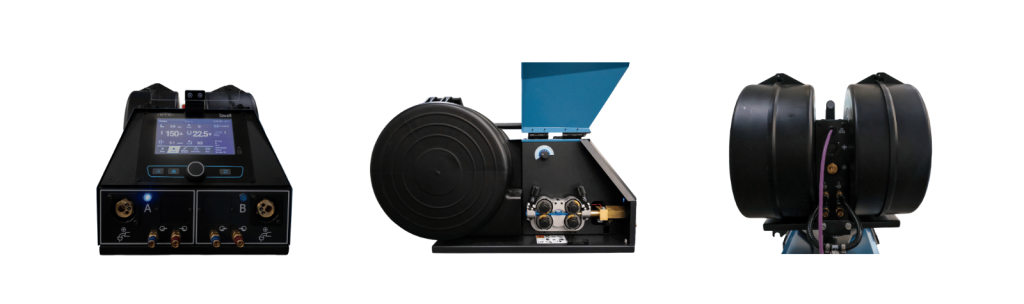

The CM-0401-D DOUBLE wire feeder enables the use of two welding wires with one ARXIS PULSE welding machine. Each side has its own welding torch, wire reel and individual settings, allowing the operator to switch between wires without removing and rethreading them.
Designed for demanding industrial applications, the system supports steel, stainless steel and aluminium welding wires with diameters of up to 2.4 mm and welding currents of up to 500 A.
The double wire feeder simplifies applications that require frequent changes between different welding wires.

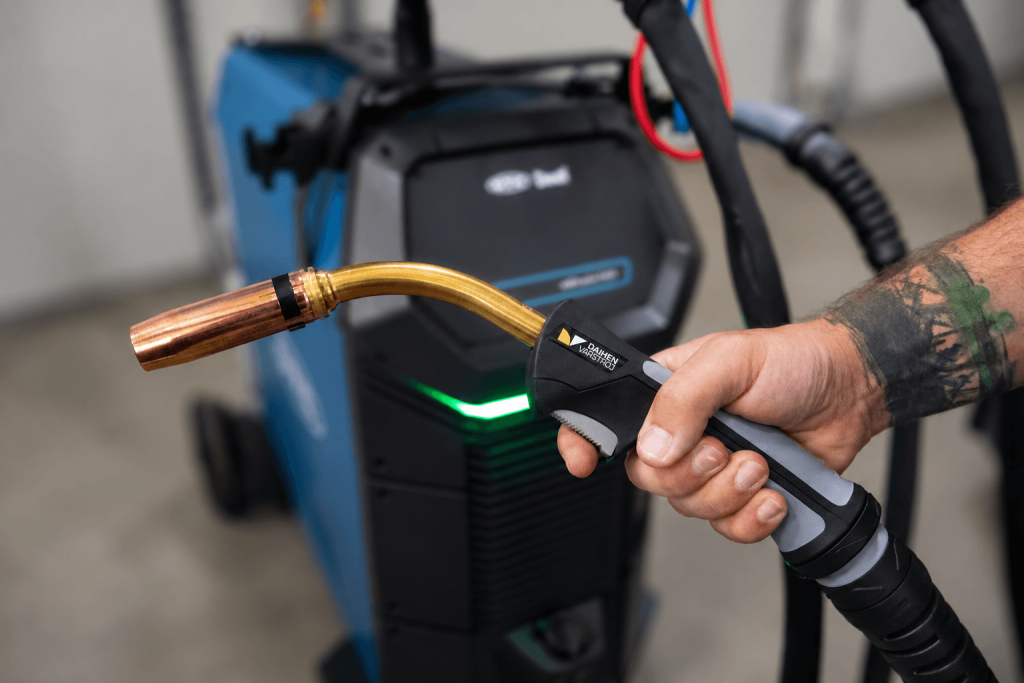

Two separate sides – A and B – allow each welding wire to have its own torch and welding parameters. Once both sides are configured, the operator can switch between them using the welding torch trigger.
This reduces interruptions, simplifies changeovers and helps maintain a smooth production workflow.
Switch between two welding wires using the welding torch trigger without removing and rethreading the wire.
Set separate welding parameters and JOBs for each wire to match different materials and applications.
Faster changeovers reduce production interruptions and improve workflow efficiency.

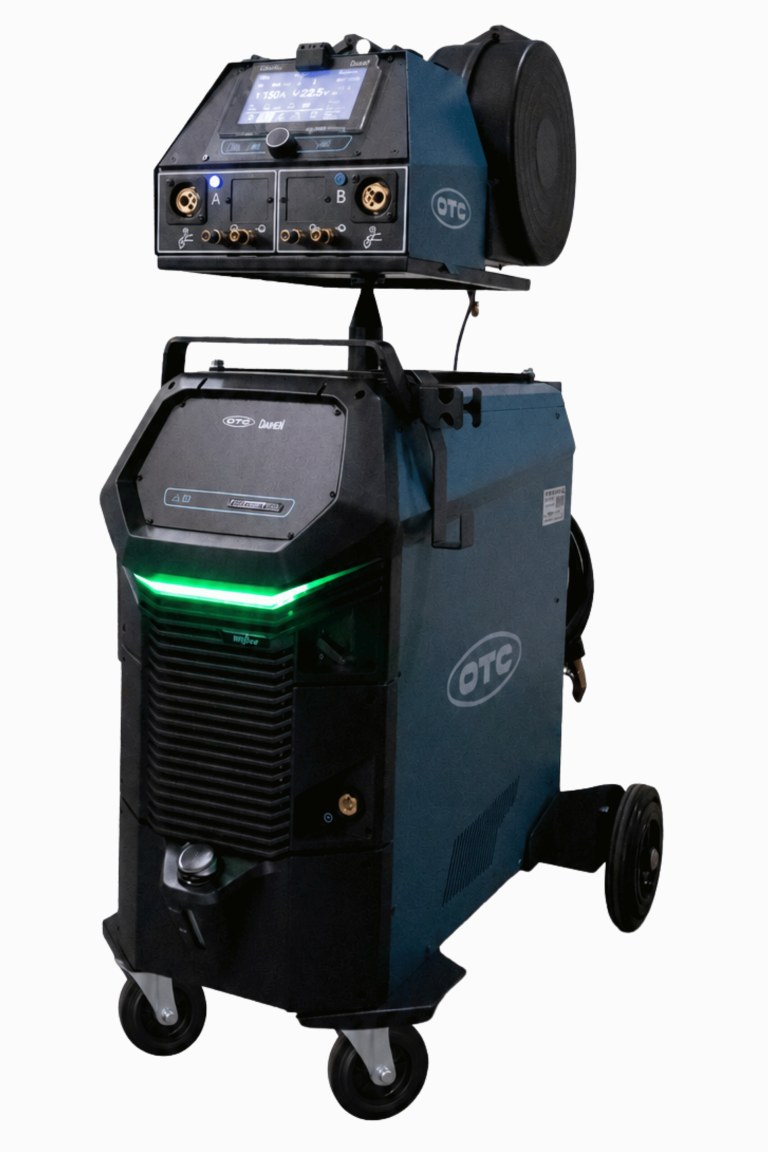

Use two welding wires with one ARXIS PULSE welding machine and one double wire feeder.

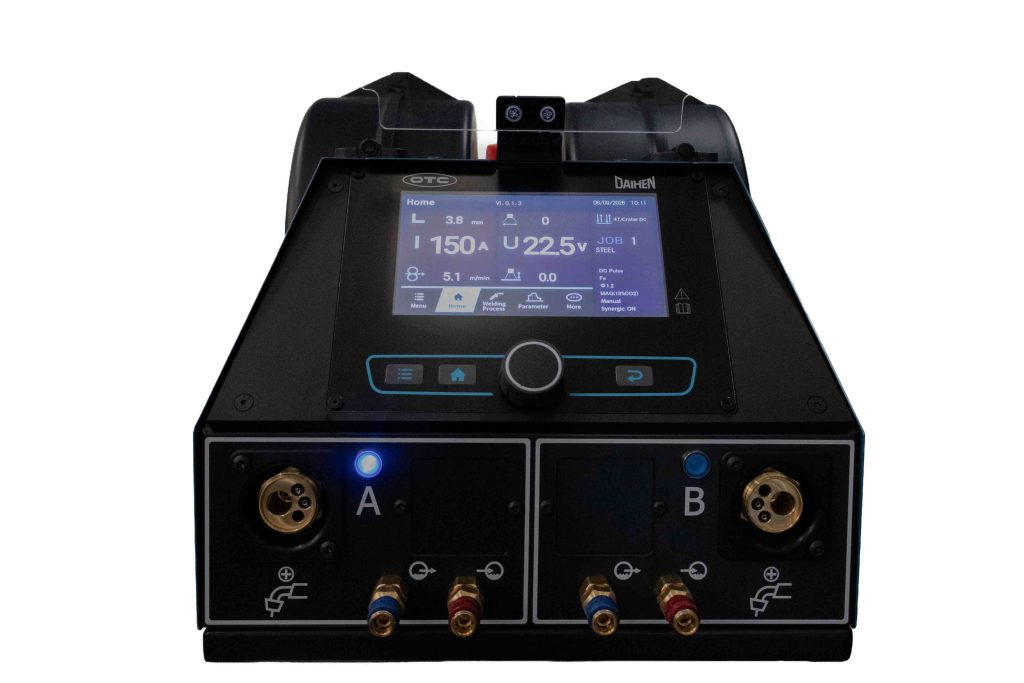

The digital control panel provides simple and user-friendly operation, with fast access to parameter setup and adjustment.
Separate settings for sides A and B allow the operator to configure two welding torches and two welding wires individually. This makes it easier to prepare the system for applications that require different materials, wire diameters or welding parameters.
With both welding wires already installed, the operator can quickly switch from one side to the other using the welding torch trigger.
There is no need to stop the process to remove the existing wire and thread a different one through the system.

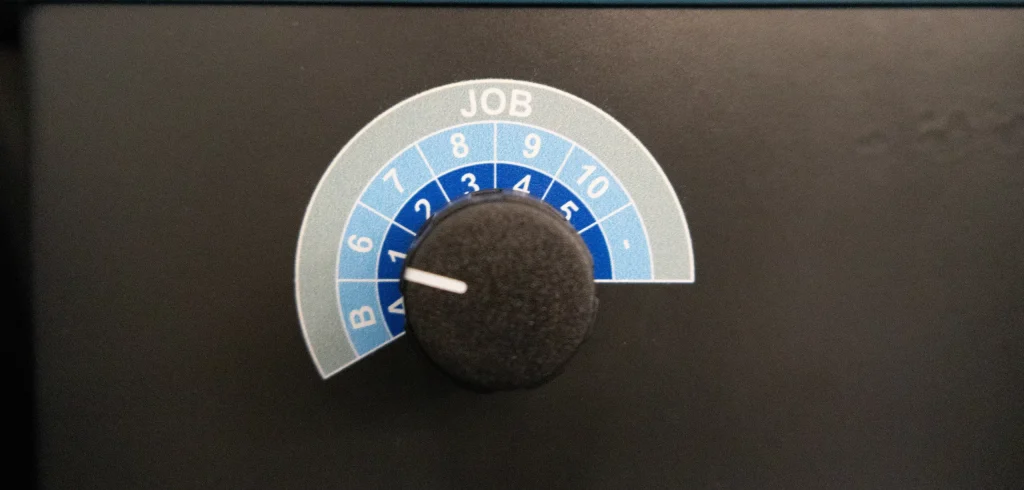

The CM-0401-D DOUBLE allows one JOB to be assigned to side A and another JOB to side B. This enables each welding wire to operate with its own predefined welding parameters.
The CM-0401-D DOUBLE is a practical solution for companies that regularly switch between different welding wires, materials or applications.
By keeping two wires ready for use, the system reduces manual changeovers and helps operators maintain a more efficient and consistent welding process.
